Product Description

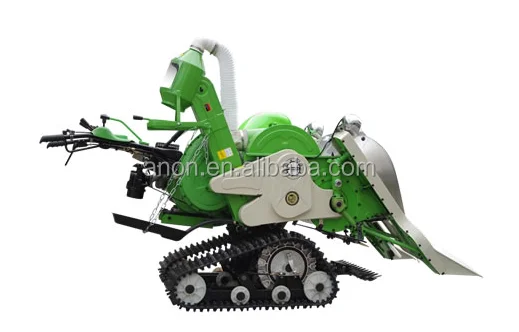

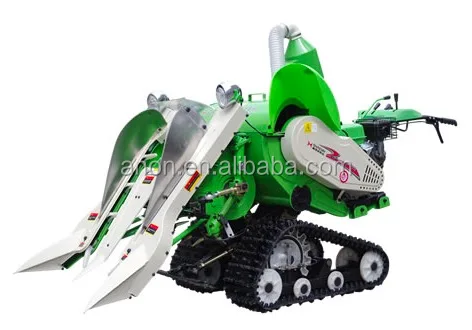

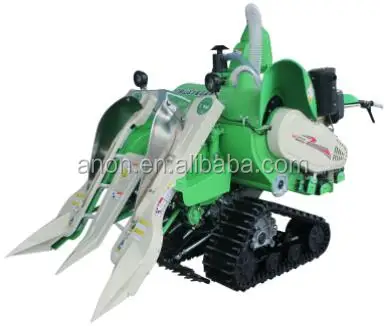

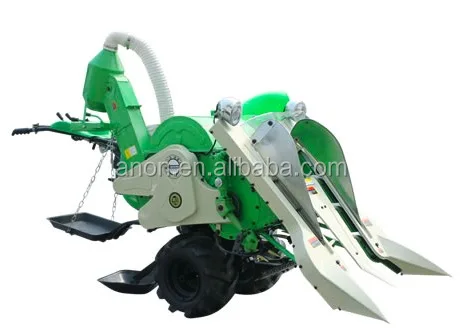

ANON AN4LZ-0.3LA mini rice harvester is a whole feed with track harvester, which is mainly used to harvest rice grain,With great adaptability, high security, good performance and high efficiency, this machine won a leading position in both domestic and abroad harvest machinery field and could satify various requirements of different customers. So it is very convenient for farming.
Techinical parameter of ANON AN4LZ-0.3LA mini rice harvester
| Model | U.M | AN4LZ-0.3LA mini harvester | |
| Type | / | whole feed self-propelled with track | |
| Overall | Working dimensions(L×W×H) | mm | 2500×1100×1500 |
| Weight | kg | 320 | |
| Working width | mm | 900 | |
| Feed quantity | kg/s | 0.3 | |
| Gear | / | five gears(slow neutral fast neutral reverse) | |
| Working rate of productivity | hm2/h | ≥0.05 | |
| fuel consumption | kg/hm2 | ≤30 | |
| Matched power | Model | / | SR180F/P gasoline engine |
| Type | / | single-cylinder,four-stroke,Air-Cooled | |
| rated output | KW/(r/min) | 6.8/3600 | |
| start method | / | electric starting | |
| fuel types | / | gasoline | |
| header lifting method | / | manual hydraulic | |
| receipt grain method | / | receipt grain by manual bagging | |
| track size(pitch*numbers*width) | / | 72mm*28*250mm | |
| track gauge | mm | 520 | |
| gear box type | / | reverse gear and range transmission | |
| operation mode | / | hand-push | |
| steering mode | / | drum brake differential turning | |
